4U Data Cabinet

4U Deep Data Cabinet (W600mm x D450mm)

Buy 4U Deep Data Cabinet (W600mm x D450mm) from TechWizard Solutions Shop in Nairobi.

The 4U Wall Mount Data Cabinets have been a popular choice for installers over the years because they meet the all-round, standard requirements of data installation, come with the option of pre-assembled fast delivery in Kenya, have excellent access, safety, and security in use, and offer robust durability once installed.

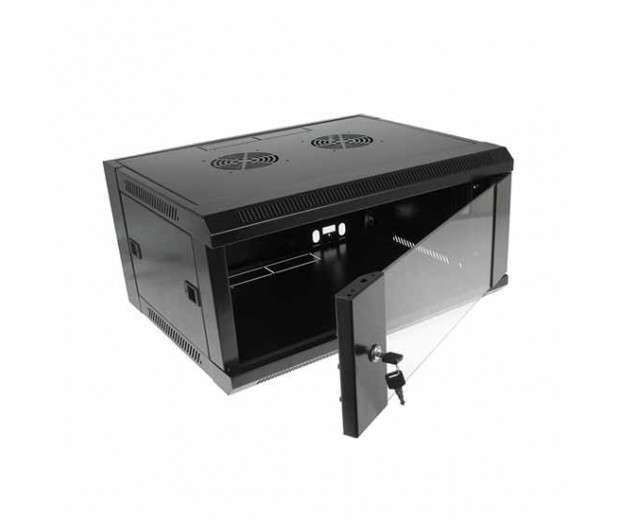

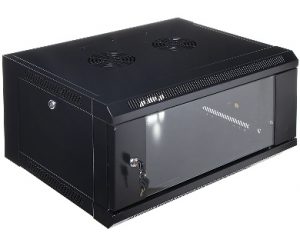

In short, the 4U 19″ Rack cabinet has removable side panels and a lockable front door. Constructed from cold-rolled steel with folded edges for strength and stability.

Components of the Data Cabinet

The front and rear rack strip is supplied and mounted to rails inside the cabinet, enabling the mounting depth to be adjusted to accommodate equipment with overhanging fittings or to support the rear of heavy units. The top panel is vented for cooling and has a cut-out for mounting a cooling fan if required.

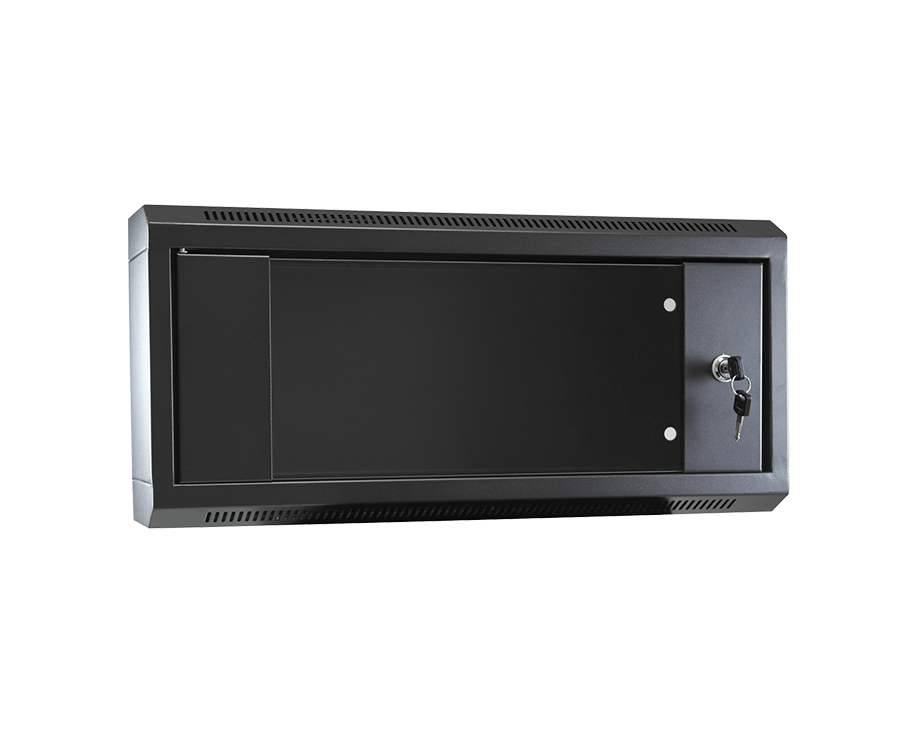

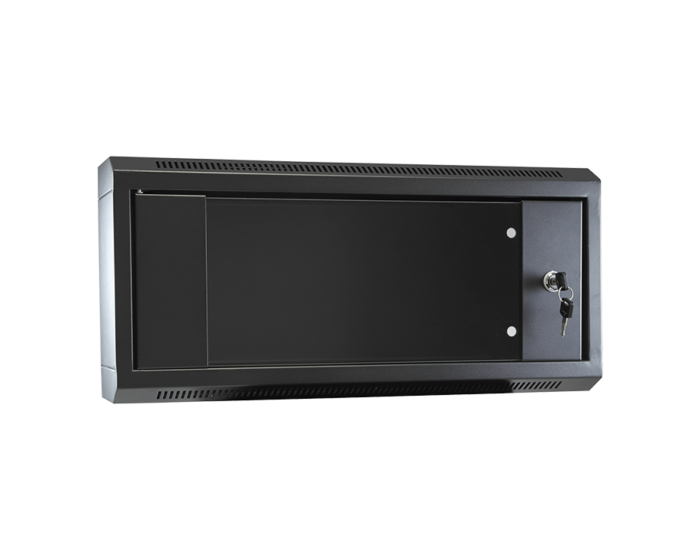

The front door is removable and has a pane of 5mm tempered glass flanked by folded steel edge panels which can be mounted to open to either the left or right. The rear panel has to fix apertures for wall mounting or alternatively, the cabinet can be free-standing. (Maximum usable Depth is 370mm)

More and more home devices to LAN, RTV, CCTV installations are made with a view to the RACK system, so that their installation is aesthetically pleasing, and that devices are protected against accidental mechanical damages.

The E-PRADO-R19-4U/450 cabinet is suitable for mounting all sorts of devices in standard 19″ rack housings. Ideal solution for installing DVRs, power units, splitters, headends, network devices, etc. Inside the cabinet can be also placed the devices that are not in standard RACK-19″ housings, for example, DVRs, multi switches, RTV-SAT amplifiers, modulators.

For this purpose, the user should mount additional shelves/shelves available for the RACK cabinet. The RACK cabinet has many openings ensuring adequate air circulation. Additionally, it is possible to install fans to increase the ventilation.

Wall mounting with mounting bracket for hanging cabinets A19-AL (not included in the kit) or hangers (not included).

Specifications

More and more home devices to LAN, RTV, CCTV installations are made with a view to the RACK system, so that their installation is aesthetically pleasing, and that devices are protected against accidental mechanical damages.

The 90EPRADOR194U-450 cabinet is suitable for mounting all sorts of devices in standard 19″ rack housings.

Ideal solution for installing DVRs, power units, splitters, headends, network devices, etc. Inside the cabinet can be also placed the devices that are not in standard RACK-19″ housings, for example, DVRs, multi switches, RTV-SAT amplifiers, modulators.

For this purpose, the user should mount additional shelf/shelves (not included) available for the RACK cabinet.

The RACK cabinet has many openings ensuring adequate air circulation. Additionally, it is possible to install fans to increase the ventilation.

Wall mounting with mounting bracket for hanging cabinets 90A19-AL (not included in the kit) or hangers (not included).

• DATASHEET

  INTERNAL WIDTH:	19 “
  INTERNAL HEIGHT:	4 U
  INTERNAL DEPTH:	350 mm
  EXTERNAL WIDTH:	570 mm
  EXTERNAL HEIGHT:	275 mm
  EXTERNAL DEPTH:	450 mm
  HOLES FOR FAN COOLERS:	105  x 105 mm (2 places)
  COLOR:	Black RAL9004
  DOOR:	Front: glass Side: metal, snap-in
  MAIN FEATURES:	Holes for cables: in the rear panel, on top, in the bottom Removable side panels Possibility to mount the door as left or right 2 keys included 2 pcs Rack rails to mounting the devices Bearing capacity: 60 kg
  WEIGHT:	13.900 kg

The box for this item contains :

• Top panel
• Base panel
• Front frame
• Rear frame
• Rear plate
• 4 x rack strips (2 left + 2 right)
• 4 side panel plastic locator studs
• Glassdoor
• Assembly hardware
• Door lock + 2 keys
• Rack mounting captive nuts & screws

• Lockable, reversible front door with perspex window for extra security
• Easy cable entry options via top, bottom, and rear
• Vented side panels
• Available in several different sizes
• Pre-assembled, for fast installation
• Sheet steel construction
• Supplied with two keys
• Two adjustable 19″ mounting angles
• Useable depth: 370mm
• Outer dimensions: 17.7”D x 11”H x 23.6”W
• Fits Standard 19″ rack-mount equipment. Inside usable space of 15.35” front to back.
• No fans included. Only one 120mm venting slot is available.
• The door is Tempered Glass.
• Removable side panels with locks. Comes fully assembled.
• Top and bottom brackets for cable and wire access. Cage Nut kit included for 2U.
