PoE DS-360326-E/M Port

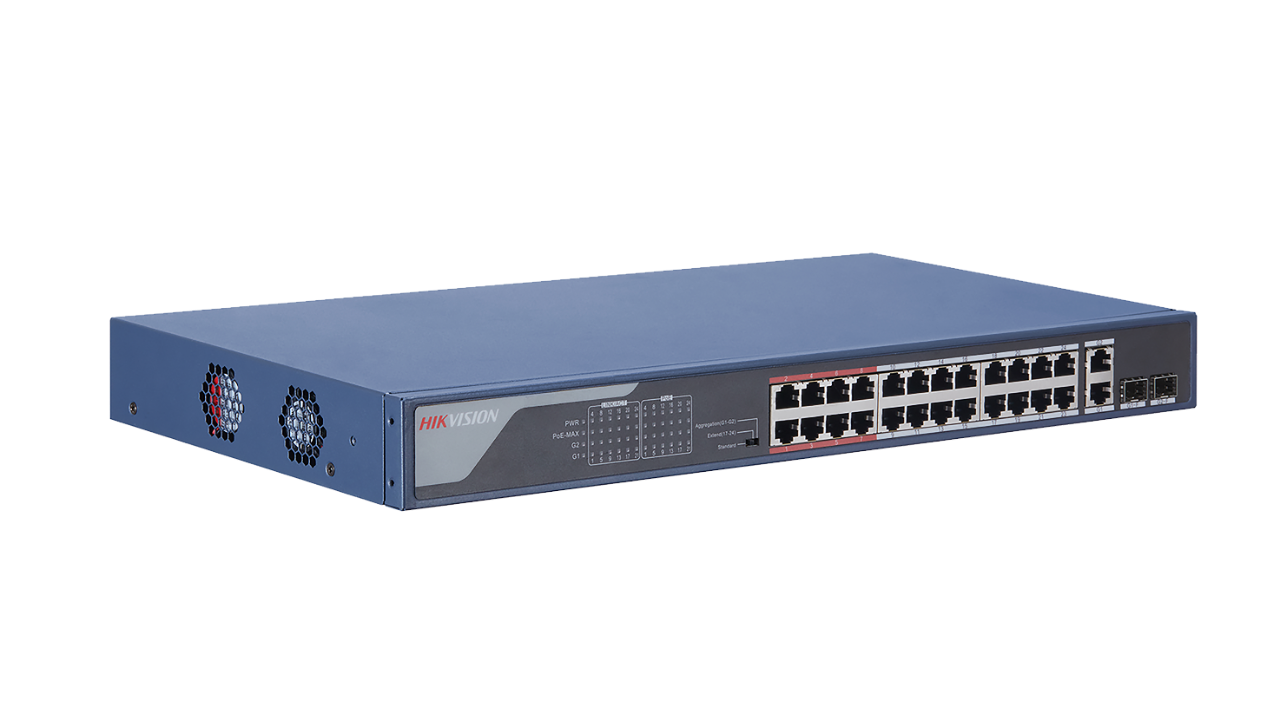

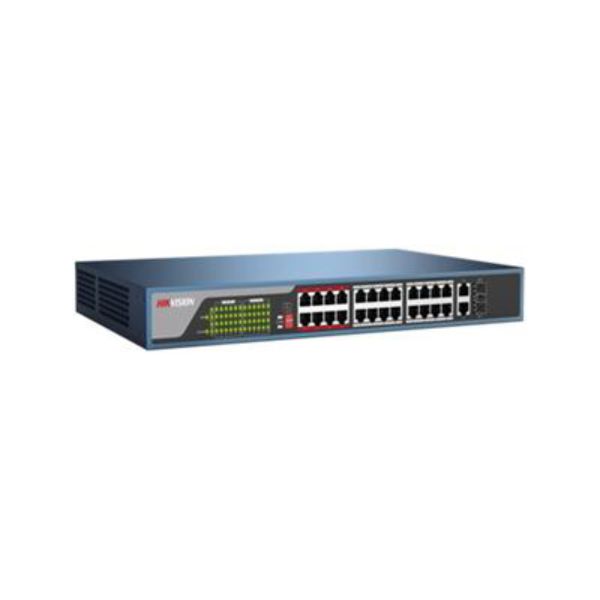

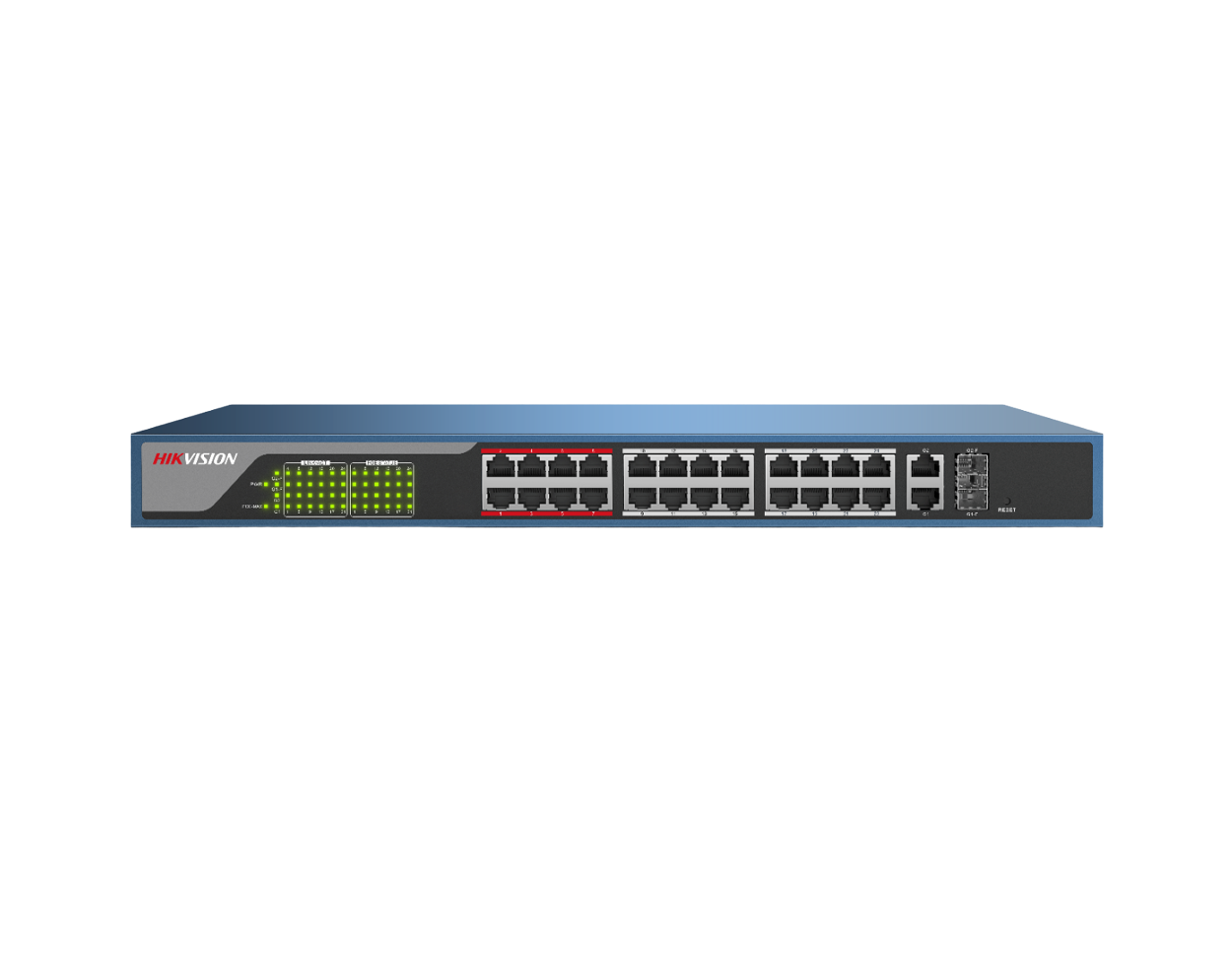

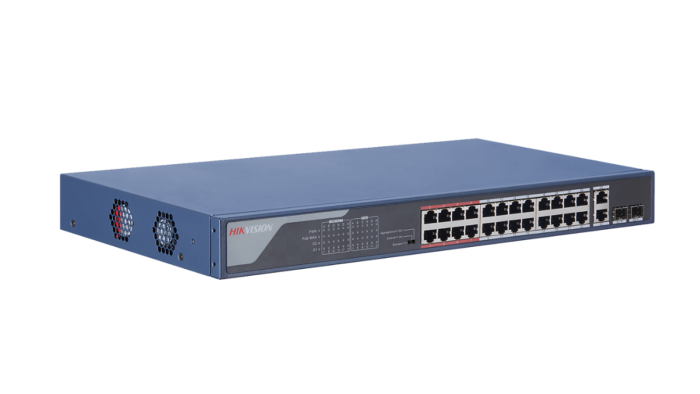

DS-3E0326P-E 24-Port 100 Mbps Unmanaged PoE Switch. Optional 820 ft (250 m) Extended Transmission Mode. 24 x 10/100 Mbps Auto-MDIX Ports • IEEE 802.3at/af PoE Compliant • Up to 30 W per PoE Port, PoE Power Budget 370 W • 4 kV Surge Protection • IEEE 802.3x Flow Control Support • Plug-and-Play Installation • 8.8 Gbps Switching Fabric • 2.75 Mbits RAM Data Buffer •
4K MAC Address Entries • Sturdy Metal Enclosure DS-3E01318P-E is a 10/100 Mbps unmanaged switch that requires no configuration and provides 24 PoE (Power over Ethernet) ports.
It can automatically detect and supply power to all IEEE 802.3af/at compliant powered devices. In these situations, electrical power is transmitted alongside data in one single cable, allowing network expansion where there are no power lines or outlets, for devices such as IP cameras, IP phones, etc. Available Models: DS-3E0326P-E
- Intelligent PoE Management. When the power supply exceeds the limit, ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300 m Long Range Transmission. The distance between IPCs and switch can reach maximum 300 meters.
- 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
- 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
PoE Power Supply
- StandardIEEE 802.3af, IEEE 802.3at
- Power Pin
Ports for long-distance transmission (17-24) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.
Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.
- PoE PortPorts 1 to 24
- Max. Port Power30 W
- Power Pudget230 W
- Max. Power Consumption250 W
- Network Parameters
- Port Number24 × 100 Mbps ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
Network Parameters
- Port Number24 × 100 Mbps ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
- Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Forwarding ModeStore-and-forward switching
- Working ModeStandard mode (default); Extend mode
- High Priority PortsPorts 1 to 8
- Ports For Long-Distance TransmissionPorts 17 to 24
- MAC Address Table4 K
- Switching Capacity8.8 Gbps
- Packet Forwarding Rate6.547 Mpps
- Internal Cache2.75 Mbits
- General
- ShellMetal material
- Gross Weight3.33 kg (7.34 lb)
- Net Weight2.55 kg (5.6 lb)
- Dimension (L × H × D)335 mm × 44.5 mm × 226 mm (13.2” × 1.8” × 8.9”)
- Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Storage Humidity5% to 95% (no condensation)
- Power Supply100 to 240 VAC, 50/60 Hz, Max. 4 A
- Power Consumption In Idle20 W
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
