High Tensile GALVANIZED HT WIRE

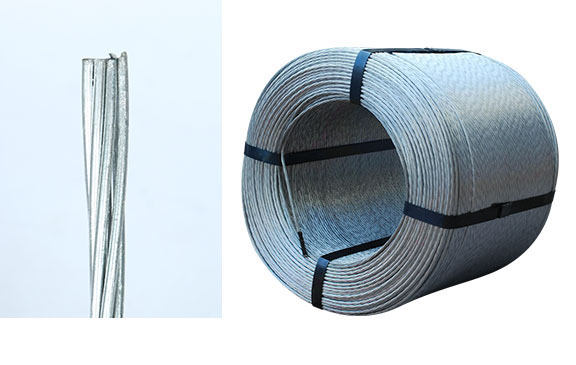

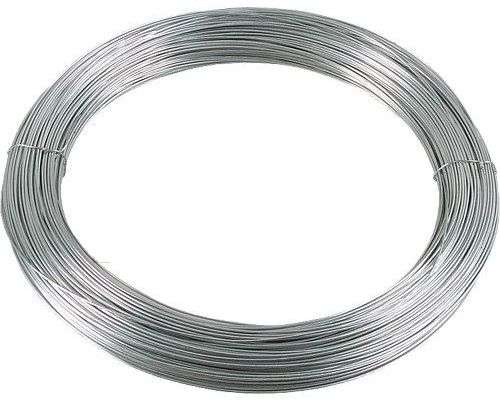

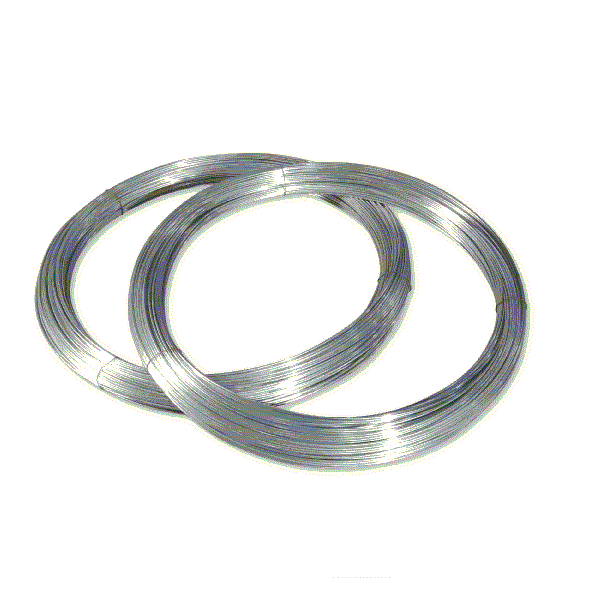

High Tensile GALVANIZED HT WIRE 1.6mm 1200m is flexible and easy to use.
It is coated with Zinc to make it rust-resistant. Ideal as a “weaving” wire, it is shiny, versatile, and available in a variety of gauges.
Our galvanized steel strand products have excellent mechanical properties. The vertical hot-dip galvanized technology ensures coating thickness.
We employ the most experienced, talented, licensed engineers in the industry to design solutions for your application.

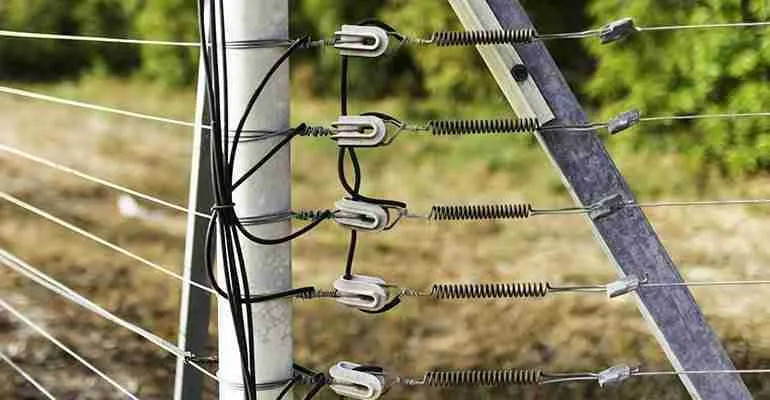

It can be used for fencing purposes, strengthening an already existing fence, or for electric fencing purposes as it is made from high carbon steel.
Material: high carbon steel
Galvanized steel wire size: Φ1.44mm-4.770mm
Strand size:7×（1.44-4.2 mm）;19×（1.44-3.5mm）;37×（1.44-3.5mm）
Tensile strength: different Grade from min.1470 N/mm2 to min.1960N/mm2
Zinc coating: According to ASTM A475 Class A
Meets ASTM Specifications A475 or A363 or ASTM B498 or BS EN 50189
ISO management system certification:ISO9001:2008, ISO18001,ISO14001
Excellent Quality With Rich Experience
Shining surface;
Excellent corrosion resistance;
Clean and firm hot-dip zinc coating;
excellent durable anti-fatigue performance;
Professional on GALVANIZED HT WIRE Strand manufacturing;
Exported to over 40 countries or regions;
Used for mechanical reinforcement in the manufacture of ACSR Cable;
High Tensile GALVANIZED HT WIRE 1.6mm 1200m is flexible and easy to use.
It is coated with Zinc to make it rust-resistant. Ideal as a “weaving” wire, it is shiny, versatile, and available in a variety of gauges.
It can be used for fencing purposes, strengthening an already existing fence, or for electric fencing purposes as it is made from high carbon steel.
High Tensile GALVANIZED HT WIRE 1.6mm 1200m
- Wire diameter 1,6 (+/- 0,05) mm
- Zinc Coating Quality: Galvanized Smooth Quality SAE 1016-1020 with minimum cover Zn 200g/m2.
- Tensile strength 80-90 Kgf/mm2
- Wire diameter 1,6 (+/- 0,05) mm
- Zinc Coating Quality: Galvanized Smooth Quality SAE 1006 with minimum cover Zn 120g/m2.
- Tensile strength 40-45 Kgf/mm2
- Packing conditions:
- Each roll packaging in big carriers, protected against moisture.
- Individual weight: 100Kg +/- 1Kg. Inside diameter: 510-600 mm.
- Packaging in wooden boxes. Each box shall have a maximum weight of 1,5 MT.
Physical Properties of Zinc Coated Steel Wires Strand
| Nominal diameter of Strand. In (mm) | Number of Wires in Strand | Nominal diameter of Coated Wires in Strand. (mm) | Approximate Weight of Strand(kg/304.8m) | Minimum Breaking Strength of Strand (KN) | ||||
| Utilities Grade | Common Grade | Siemens-Martin Grade | High Strength Grade |
Extra-High Strength Grade | ||||
| 3/16 (4.76) | 7 | 1.57 | 33 | —– | 5.115 | 8.452 | 12.677 | 17.748 |
| 7/32 (5.56) | 3 | 2.64 | 40 | —– | 6.228 | 10.409 | 15.569 | 21.796 |
| 7/32 (5.56) | 7 | 1.83 | 44 | —— | 6.850 | 11.387 | 17.126 | 24.020 |
| 1/4 (6.35) | 7 | 2.03 | 55 | —— | 8.452 | 14.012 | 21.129 | 29.581 |
| 9/32 (7.14) | 7 | 2.36 | 74 | 20.462 | 11.432 | 18.905 | 28.469 | 39.812 |
| 5/16 (7.94) | 7 | 2.64 | 93 | —– | 14.234 | 23.798 | 35.586 | 49.820 |
| 3/8 (9.52) | 7 | 3.05 | 124 | 51.155 | 18.905 | 30.915 | 48.040 | 68.503 |
| 7/16 (11.11) | 7 | 3.68 | 181 | 80.068 | 25.355 | 41.591 | 64.499 | 92.523 |
| 1/2 (12.70) | 7 | 4.19 | 234 | 111.206 | 32.917 | 53.823 | 83.627 | 119.657 |
| 1/2 (12.70) | 19 | 2.54 | 229 | —— | 33.895 | 56.492 | 84.961 | 118.768 |
| 9/16 (14.29) | 19 | 2.87 | 289 | ——- | 42.881 | 71.616 | 107.202 | 149.905 |
| 5/8 (15.88) | 19 | 3.18 | 361 | ——- | 48.930 | 80.513 | 124.995 | 178.819 |
| 3/4 (19.05) | 19 | 3.81 | 524 | ——- | 71.172 | 116.643 | 181.487 | 259.331 |
