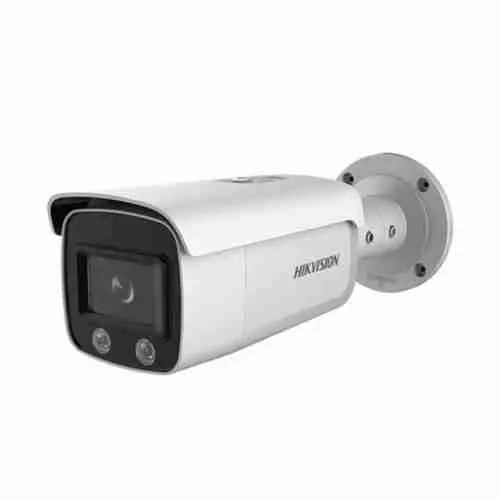

Bullet IP AcuSense Camera 4MP
Bullet IP AcuSense Camera 4MP, 2.8mm (109°) fixed lens Face Detection ColorVu for full-time Colorful Image. Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses, high-performance sensors, and friendly lighting. F1.0 super-aperture collects more light to produce brighter images.
Advanced sensor technology can vastly improve the utilization of available light. In zero-light scenarios, built-in, warm supplemental lighting works to guarantee colorful images.
Product Description
- Main Stream50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720); 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Video CompressionMain stream: H.265+/H.265/H.264+//H.264, sub-stream: H.265/H.264/MJPEG, third stream: H.265/H.264
- H.264 TypeMain Profile/High Profile
- H.265 TypeMain Profile
- Video Bit Rate32 Kbps to 16 Mbps
- Smart Feature-Set
- Behavior AnalysisLine crossing detection, intrusion detection, object removal detection, unattended baggage detection
- Region Of InterestSupport 1 fixed region for mainstream and sub-stream separately
- Exception DetectionScene change detection
- Face DetectionYes
- Image EnhancementBLC/3D DNR/HLC
- Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night SwitchDay/Night
- Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288); 60Hz: 30fps(1280 × 720, 640 × 360, 352 × 240)
Network
- Network StorageSupport micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS, SMB/CIFS), ANR
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
APIONVIF (PROFILE S, PROFILE G), ISAPI
- Simultaneous Live view up to 6 channels
- User/host up to 32 users, 3 levels: Administrator, Operator, and User
- ClientiVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200
Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11; Plug-in free live view:Chrome 45.0+, Firefox 52.0+
Alarm Trigger: Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Interface
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
General
- Firmware VersionV5.5.82
- General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Reset Yes
- Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug, PoE (802.3aF, class 3)
- Power Consumption And Current12 VDC, 0.7 A, max. 9.5 W, PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 11 W
- MaterialFront cover: metal, back cover: metal
- DimensionsCamera: Φ 105 × 290.7 mm (Φ 4.1″ × 11.4″);With package: 385 × 190 × 180 mm (15.2″ × 7.5″ × 7.1″)
- Weight AcuSense Camera: 1200 g (2.6 lb.); With package: 1800 g (4 lb.)
- Interface ProtectionIP67
Full time color
- Max. 2688 × 1520 @30fps
- 2.8mm fixed lens
- H.265+, H.264+
- 120dB WDR
- IP67
- 12 VDC & PoE (802.3af, class 3)
- Built-in micro SD/SDHC/SDXC slot, up to 128G
- BLC/3D DNR/HLC/ROI
- 0.0014 Lux @ (F1.0, AGC ON), 0 Lux with Light
Hikvision Camera
Specifications Hikvision DS-2CD2T47G1-L
| Type of cameras | Bullet |
| Max.Resolution | 4MP |
| Focal length | 2.8mm 4.0mm |
| IR Distance | 30m |
| Colour | White |
| Power Supply | 12Vdc, Poe |
| Protection Level | IP67 |
| Working Environment | -30°C~+60°C |
Hikvision’s DS-2CD2T47G1-L ColorVu Fixed Bullet Outdoor Network AcuSense Camera features an ƒ/1.0 lens aperture for maximum light gathering capability to provide full-color imaging in extremely dark settings.
-
0.0014 Lux @ (ƒ/1.0, AGC On), 0 Lux with Light
-
Maximum 2688 × 1520 @ 30 fps
-
4 mm/6 mm fixed lens
-
H.265+, H.264+
-
Main Stream 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
-
Up to 98 ft (30 m)
-
12 VDC and PoE (802.3af, Class 3)
4 MP ColorVu Fixed Bullet Network AcuSense Camera
- High-quality imaging with 4 MP resolution
- 24/7 full-color imaging
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 120 dB true WDR technology
- Water and dust resistant (IP67)
- Robust structure design with full metal materials
Hikvision DS-2CD2T47G1-L Overview
The DS-2CD2T47G1-L ColorVu 4MP Outdoor Network Bullet Camera from Hikvision uses a 1/1.8″ progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. Built-in dual spotlights provide up to 98′ of illumination.
The camera’s 4mm fixed lens delivers a 94° horizontal field of view. A memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This bullet camera complies with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated metal enclosure that is suitable for outdoor use.
