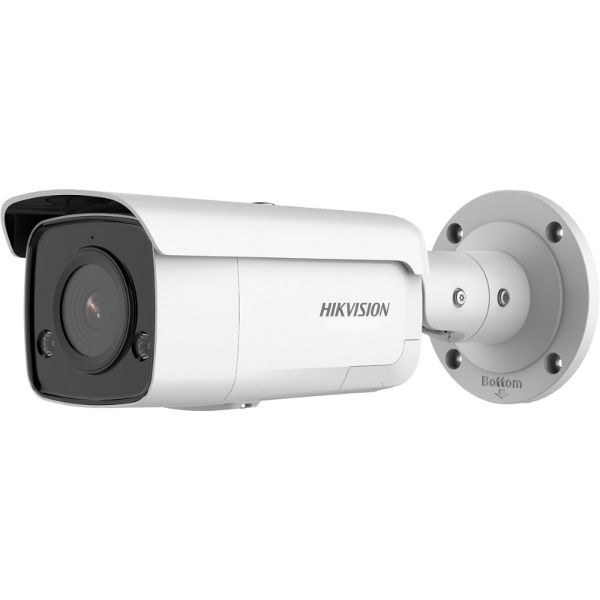

AcuSense Cameras DS-2CD2T46G2-4L

AcuSense Cameras is Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.

The AcuSense Seriex Hikvision Cameras include powerful A.I. False Alarm Filtering, Inbuilt speaker, Strobe Light, and Audio announcements of programmed events. Powered by Darkfighter technology this camera is a new generation to make analytics of events more powerful and trouble-free than ever before.

This camera is IP66 rated
High-quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong backlight due to 120 dB true WDR technology
Efficient H.265+ compression technology
False alarm reduction through human and vehicle target classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provides real-time security via built-in two-way audio
Water and dust resistance (IP66)

* 4MP 2688 × 1520 @ 30fps
* 2.8mm lens
* Color: 0.012 Lux @ (F1.6, AGC ON), 0 Lux with IR.
* H.265, H.265+, H.264, H.264+
* BLC / 3D / DNR / HLC / ROI
* IR range up to 60 m
* Built-In speaker,
* Strobe Light @ Audio alarm

Camera

• Image Sensor 1/2.7″ Progressive Scan CMOS
• Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON)
• Shutter Speed 1/3 s to 1/100,000 s
• Slow Shutter Yes
• P/N P/N
• Wide Dynamic Range 120 dB
• Day & Night ICR Cut
• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate 0° to 360°

Lens

• Lens Type & FOV 2.8 mm, horizontal FOV: 103°, vertical FOV: 55°, diagonal FOV: 123° 4 mm, horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 98° 6 mm, horizontal FOV: 53°, vertical FOV: 29°, diagonal FOV: 62°
• Aperture F1.4
• Lens Mount M12

Illuminator

• IR Range Up to 60 m
• Wavelength 850 nm
• Smart Supplement Light Yes
• Visual Alarm Yes

Video

• Max. Resolution 2592 × 1944
• Main Stream 50Hz: 20fps (2592 × 1944) 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2592 × 1944) 30fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240) 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)
• Video Compression Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
• Video Bit Rate 32 Kbps to 8 Mbps
• H.264 Type Baseline Profile/Main Profile/High Profile
• H.265 Type Main Profile
• H.264+Main Stream supports
• H.265+Main Stream supports
• Bit Rate Control CBR/VBR
• Scalable Video Coding (SVC) Yes
• Region Of Interest (ROI) 1 fixed region for each stream

Audio

• Environment Noise Filtering Yes
• Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3
• Audio Bit Rate 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8-320Kbps(MP3)

Network

• Simultaneous Live View Up to 6 channels
• API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• Smooth Streaming Yes
• User/Host Up to 32 users. 3 user levels: administrator, operator, and user
• Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE, and digest authentication for ONVIF
• Network Storage microSD/SDHC/SDXC card (256 GB) local storage and NAS(NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client iVMS-4200, Hik-Connect, Hik-Central
• Web Browser Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+


• Day/Night Switch Day, Night, Auto, Schedule
• Image Enhancement BLC, HLC, 3D DNR
• Image Parameters Switch Yes
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface for AcuSense Cameras

• Alarm 1 input, 1 output (max. 24 VDC, 1 A or max. 24 VAC, 1 A)
• Audio 1 input (line-in), terminal block, max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium; 1 built-in speaker, 1 built-in microphone
• On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Hardware Reset Yes
• Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port

• Intelligent (Traditional Algorithm)
• Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection

• Intelligent (Deep Learning Algorithm)
• Face Capture Yes
• Premier Protection Line crossing detection, intrusion detection, region entrance detection, region exiting detection

General

• Linkage Method Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture, strobe light, audible warning *Note: External device is required.
• Web Client Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General FunctionAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
• Software Reset Yes
• Storage Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
• Startup And Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
• Power Supply 12 VDC ± 25%; PoE: 802.3af, Class3
• Power Consumption And Current 12 VDC, 0.88 A, max. 10.5 W; PoE: (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12.5 W
• Power Interface Ø5.5 mm coaxial power plug
• Material Aluminum alloy body
• Camera Dimension Ø105 × 287.6 mm (Ø4.1″ × 11.3″)
• Package Dimension 386 × 156 × 155 mm (15.2″ × 7.5″ × 7.1″)
• Camera Weight Approx. 1120 g (2.5 lb.)
• With Package Weight Approx. 1634 g (3.6 lb.)

Approval

• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
• Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection Ingression protection: IP66 (IEC 60529-2013)

4 MP AcuSense Fixed Bullet Network Camera New

• High-quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Water and dust resistant (IP67)

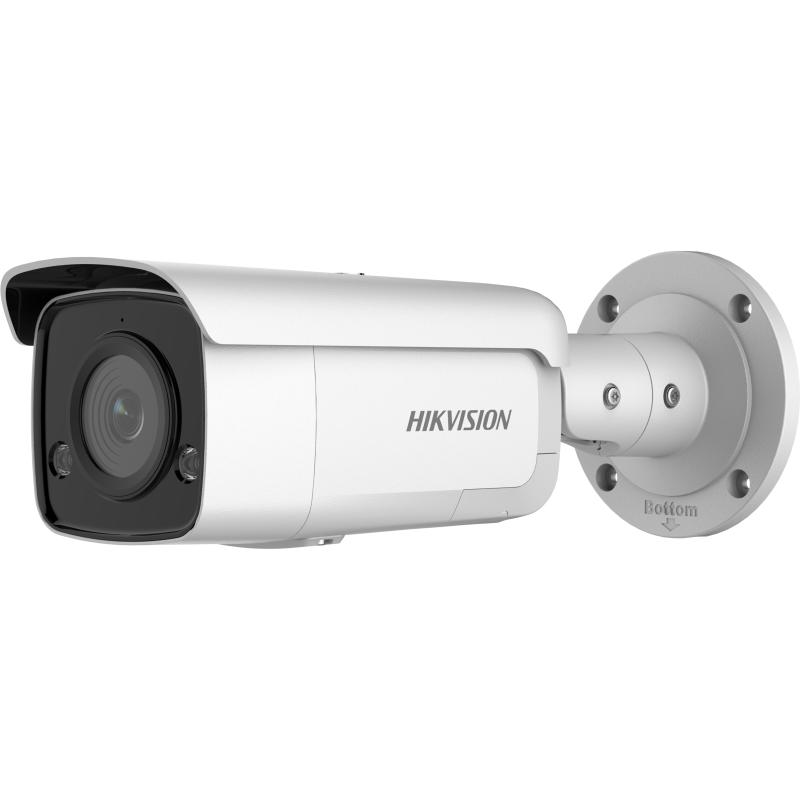

4 MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera

• High-quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provides real-time security via built-in two-way audio
• Water and dust resistant (IP67)

4MP AcuSense IP Bullet Camera with inbuilt Audio Speaker and Strobe

This AcuSense Cameras is IP66 rated

The AcuSense Series Hikvision Cameras include powerful A.I. False Alarm Filtering, Inbuilt speaker, Strobe Light, and Audio announcements of programmed events. Powered by Darkfighter technology this camera is a new generation to make analytics of events more powerful and trouble-free than ever before.

Hikvision DS-2CD2T46G2-ISU/SL Accusense IP Camera – 4MP Bullet (2.8mm),1/2.7″ Progressive Scan CMOS; H.265+/H.265/H.264+/H.264/MJPEG; Powered by Darkfighter technology,Color: 0.007 lux @(F1.2, 0.012 lux @(F1.6, AGC ON), 0 lux with IR; 25fps/30fps(2688×1520,2304×1296,1920×1080); VCA functions; 3 streams; 3D DNR; BLC; ICR; EXIR; DC12V&PoE; Built-in micro SD/SDHC/SDXC slot; HIK-Connect cloud service, Built-in Strobe light & Audio
Supplied with 2.8mm Lens

Description Hikvision DS-2CD2T46G2-4I AcuSense 4MP Bullet IP Camera 2.8mm (103°) fixed lens | WHITE

The Hikvision DS-2CD2T46G2-4I is a versatile 4-megapixel bullet camera with additional IR light that can cover a distance of up to 80 meters. Inside the Hikvisions Simple IP 4.0 AcuSense series, the camera is one of the last to be released.

AcuSense Cameras
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.

• High-quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 120 dB true WDR technology
• False alarm reduction through human and vehicle target classification based on deep learning
• Water and dust resistant (IP67)
• 3D DNR technology delivers clean and sharp images

Specifications
