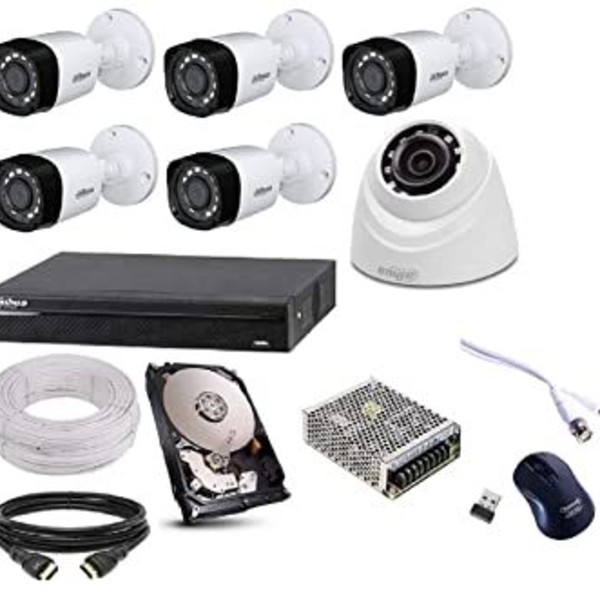

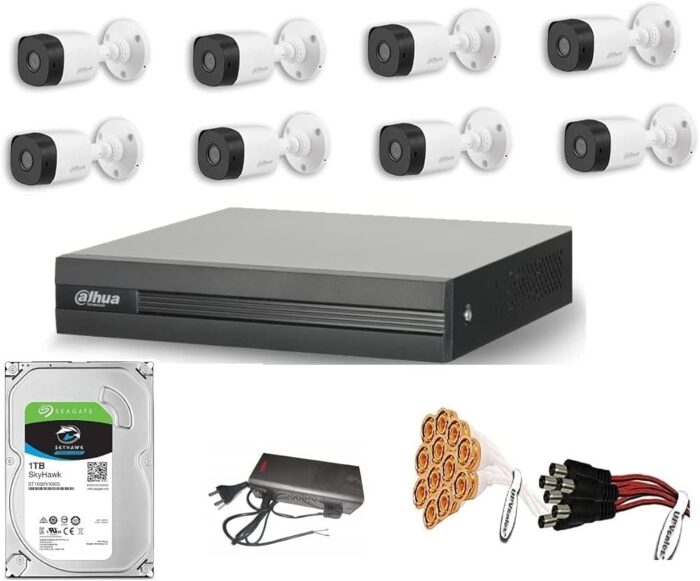

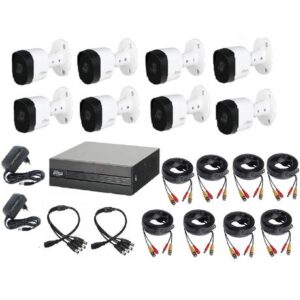

ABOUT 8 CHANNEL FULL KIT DAHUA
- Real-Time capture
You will be amazed by the stunning image quality of Dahua. It’s like comparing the difference between a VHS videotape and a Blu-Ray movie, allowing you to see details and colors like never before. If an incident occurs you can transfer video files to backup media via the easily accessible USB port or save them to your network. - Easy InstallationInstallation and set up is easy, simply run the cable from the camera to the HD DVR and click the cables into place and you’re set. – It really is that easy.
- Long Distance Transmission The HDCVI system supports long-distance transmission over coaxial cable and UTP, max. 700m for 4K/4MP, 800m for 1080P, and 1200m for 720P.
Smart Fan Design
- The smart fan can automatically turn on or turn off according to the CPU temperature. This function can effectively reduce the fan noise to provide a better user experience.
- Smart Search This function helps you get more motion to detect video during a short time through drawing a region when playback. It is very useful when an emergency occurs.
- Perfect Image Quality High-performance chip provides perfect image quality with better color reproduction.
- P2P Monitor at any time and anywhere. Easily and conveniently manage the device.
- Remote viewing Setting up the DVR for remote viewing has never been easier. Watch your home or business live from anywhere in the world using your mobile phone, laptop, or PC. Stay Alert At Any Time.
- Night vision Monitor the perimeter of your business or home also when it is pitch black outside. After the sun sets, the security camera automatically changes to night view. With a combination of over 40 infrared sensors, the security camera can capture criminal activity in the darkness with almost the same clarity as to its daytime equivalent.
- Free monitoring mobile/pc software Get free mobile and PC app for monitoring and surveillance on your pc or mobile. A truly immersive experience 24hrs live view and monitoring from the comfort of your hands.
Technical Features of Dahua
With Smartphone and PC remote viewing• H., 264 /H.264+& Dual-stream video compression• Support both HD-TVI /analog and AHD cameras with
adaptive access
• Full channel recording at up to960P lite resolution
• HDMI and VGA output at up to 1920×1080P resolution
• Long transmission distance over coax cable
• Support 4ch synchronous playback at 720P resolution video/Audio Input
Audio Input: – 1-ch
Video Compression: – H.264,H.264+
Analog and HD-TVI video input: – 4-ch BNC interface (1.0Vp-p, 75 Ω)
Supported camera types: – Support HDTVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz,
Support AHD input: 720P/25Hz, 720P/30Hz,
support CVBS input
Video-Input Interface: – BNC (1.0 Vp-p, 75Ω)
Audio Compression: – G.711u
Audio Input Interface: – RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio: – 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
MORE ABOUT DAHUA.
HDMI/VGA Output: – 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution: – When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF;
When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
When 1080p Lite mode not enabled:
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Video Bit Rate: – 32 Kbps ~ 4 Mbps
Stream Type: – Video/Video&Audio
Audio Output: – 1-ch RCA(Linear, 1kΩ)
Audio Bit Rate: – 64kbps
Dual Stream: – Support
Playback Resolution: – 1080p lite/720p/WD1/4CIF/VGA/CIF
Synchronous Playback: – 4-ch
Network management
Remote connections: – 32
Network protocols: – TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk Driver
Interface Type: – 1 SATA Interface
Capacity: – Up to 6 TB capacity for each disk
External Interface
Network Interface: – 1; 10M / 100M self-adaptive Ethernet interface
USB Interface: – 2 USB 2.0 Interfaces
KEY FEATURES OF 8 CHANNEL FULL KIT DAHUA
- DVR Description: H.265+/H.265/H.264+/H.264 encoding for the mainstream, and H.265/H.264.720P Resolution for recording.
- Long-distance transmission over UTP and coaxial cable
- True Day/Night, Smart IR HDMI, and VGA output
- Smartphone and PC viewing-ch synchronous playback at 720p resolution HD DVR(Digital Video Recorder)
- 720p DVR for excellent full HD coverage.
